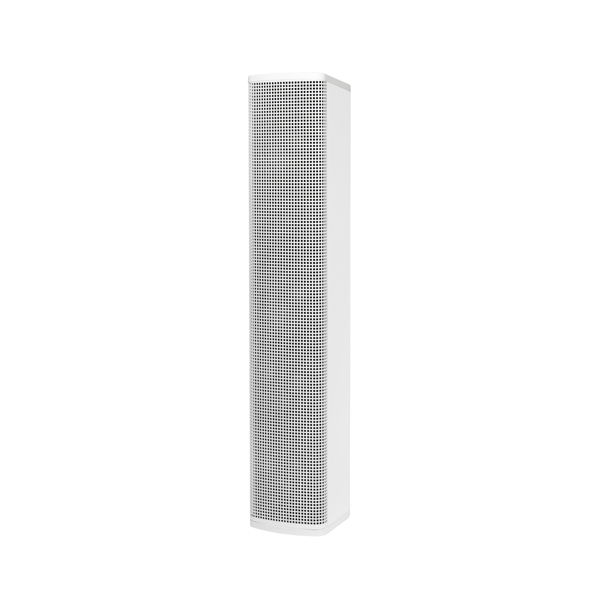

DSP5420 200W Professional Column Speaker - 翻译中...

Merkmale

● The DSP5210 series products include multiple models, each equipped with a different number of speaker units and tweeters to meet different audio needs and application scenarios.
● High-quality aluminum alloy structure, stable and durable, suitable for various decoration places.
● Featuring a 4.5" full-range speaker and 1" tweeter, this speaker offers focused sound energy and superior clarity.
● The product's sensitivity ranges from 88dB to 90dB, the rated power ranges from 100W to 600W, and the maximum sound pressure level is up to 117.8dB, making it suitable for application environments that require high volume and clarity.
● The coverage angle of the DSP5210 series speakers is designed to be 140°(H)×20°(V), which not only ensures sound clarity and uniformity, but also takes into account the optimization of the spatial sound field.

Jetzt kontaktieren Nachricht hinterlassen Herunter laden

Einführung
Spezifikation
Anschluss

翻译中...

Model		DSP5210	DSP5420	DSP5630	DSP5840	DSP1260
Speaker Unit	Full-range	4.5"x2	4.5"x4	4.5"x6	4.5"x8	4.5"x12
Speaker Unit	Tweeter	1"x1	1"x1	1"x1	1"x1	1"x1
Rated Power (RMS)		100W	200W	300W	400W	600W
Impedance		8Ω	8Ω	8Ω	8Ω	8Ω
Freq. Response		120-18KHz	120-18KHz	110-18KHz	110-18KHz	95-18KHz
Sensitivity		88dB	89dB	90dB	90dB	90dB
Maximum SPL		108dB	112dB	114.7dB	116dB	117.8dB
Coverage Angle		140°(H)×20°(V)	140°(H)×20°(V)	140°(H)×20°(V)	140°(H)×20°(V)	140°(H)×20°(V)
Dimension(LxWxH)		123142393mm	123142653mm	123142912mm	1231421166mm	1231421687mm
Net Weight		3.84KG	6.46KG	9.02KG	11.65KG	16.63KG
