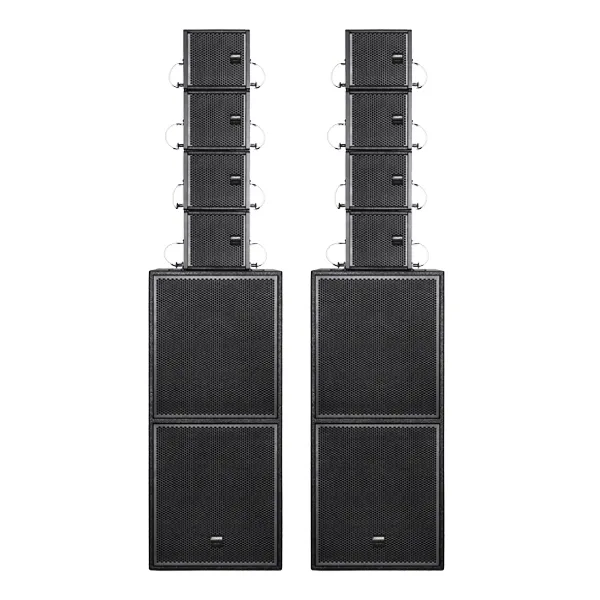

DSP1580 Active Line Array PA Speaker System - 翻译中...

Merkmale

● Compact coaxial design for precise point-source sound reproduction.
● Built-in 2kHz crossover ensures smooth frequency transition between HF and MF drivers.
● High acoustic efficiency with 140°×30° dispersion for optimal coverage.
● Featuring 1×1.5" HF driver, 1×6.5" MF driver, and 2×15" subwoofers, the whole system delivers clear, balanced sound with powerful low-frequency extension.
● The whole system delivers a maximum sound pressure level of 132dB with a sensitivity of 98dB, ensuring powerful and dynamic sound performance.

Jetzt kontaktieren Nachricht hinterlassen Herunter laden

Einführung
Spezifikation

翻译中...

Model	DSP1580
Whole System
MAX. SPL.	132dB
Sensitivity	98dB
Full-Range Speaker
Frequency Response	75Hz-20KHz (±3dB)
Sensitivity	95dB/W (lm)
MAX. SPL.	120dB MAX.
Nominal Impedance	8Ω
Nominal Power	200W
Peak Power	800W Peak
Dispersion (H×V)	140°×30°
Crossover Point	Built-in crossover 2KHz
System Type	Passive 2-way coaxial line array
HF drivers	1×1.5" HF driver (38mm voice coil)
MF drivers	1×6.5" MF driver (38mm voice coil)
Paint	Scratch-resistant black speckled paint
Dimensions (H×W×D)	230×270×230 mm
Net Weight	5.5kg
Dual 15-Inch Subwoofer
Frequency Response	30Hz-200Hz (±3dB)
Sensitivity	95dB/W (lm)
MAX. SPL.	125dB MAX.
Nominal Impedance	8Ω
Nominal Power	1200W
Peak Power	4800W
Amplifier Power	1200W+800W+800W (3 channels)
LF Drivers	2×15" LF drivers (75mm voice coil)
Dimensions (H×W×D)	1000×445×455 mm
Net Weight	44kg
