LA0316 Active Column Array Speaker System with 12 Inch Subwoofer - 翻译中...

Merkmale

● 8 × 3” full-range drivers deliver clear and natural mid-high frequencies.
● 12” subwoofer provides deep and powerful low-frequency performance.
● Built-in DSP with FIR filtering ensures precise and optimized sound tuning.
● Supports PEQ, crossover, delay, limiter, phase, and gain adjustment.
● High SPL output suitable for professional sound reinforcement applications.
● Supports XLR and TRS audio input connections.
● Built-in USB playback with MP3 format support.
● Integrated Bluetooth for wireless audio streaming.
● Supports TWS function for wireless stereo linking between two speakers.
● DSP control via PC software for flexible parameter configuration.
● Real-time monitoring of input/output levels and system status.
● Supports preset saving, recall, upload, and download.
● Dual voltage selection (110V / 220V) for flexible power compatibility.
● Built-in limiter protection ensures safe and stable operation.
● Slim column design with wide horizontal sound coverage.
● Compact structure for easy transport and installation.

  • Einführung
  • Spezifikation

翻译中...

Model

LA0316

3”×8 Column Speaker

Drive Unit

MF: 3”×8 (25mm Voice Coil)

Rated Power

160W

Program Power

320W

Peak Power

640W

Impedance

Frequency Response

98Hz~16kHz

Sensitivity

96dB

Max. SPL

118dB

Signal Input

Dedicated Link Connector

Directivity Angle

100°(H)×20°(V)

Product Dimensions (H×W×D)

810×105×140mm

Package Dimensions (H×W×D)

860×360×240mm (2PCS/CTN)

Net Weight

6.5kg

Gross Weight

18kg

Single 12” Subwoofer

Drive Unit

LF: 12”×1 (75mm Voice Coil)

Rated Power

300W

Program Power

600W

Peak Power

1200W

Impedance

Frequency Response

38Hz~200Hz

Sensitivity

96dB

Max. SPL

121dB

Signal Input

2×XLR / TRS

Supported Function

BT / USB / MP3 / TWS

Product Dimensions (H×W×D)

600×365×450mm

Package Dimensions (H×W×D)

686×435×520mm

Net Weight

21kg

Gross Weight

24kg


Produkte in Beziehung

  • LA4212 Line Array Profession eller LautsprecherLA4212 Line Array Profession eller LautsprecherApril 12, 2022LA4212 ist eine kleine Gruppe profession eller 8-Zoll-Line-Array-Lautsprecher für große Outdoor-Konzerte mit großer Leistung und guter Qualität. Es kombiniert einen 8x4,5 "Hochtöner und einen 1x12" Subwoofer. Mit einem hochwertigen High-End-Hochfrequenz-Passiv array...view
  • PL208 Passive Line Array Full-Range Speaker - 翻译中...PL208 Passive Line Array Full-Range Speaker - 翻译中...March 27, 2026The PL208 is a compact line array module designed to deliver high output with clear and well-balanced sound reproduction across a frequency range of 70 Hz to 18 kHz.It features dual 8-inch low-frequen...view
  • DSP1580 Active Line Array PA Speaker System - 翻译中...DSP1580 Active Line Array PA Speaker System - 翻译中...September 28, 2025The Professional Active Line Array Speaker System delivers outstanding sound performance with unique advantages in acoustic structure and phase characteristics. Its “point source” design with integr...view
Hinterlassen Sie eine Nachricht Mailen Sie uns

Wir werden Sie innerhalb von 24 Stunden kontaktieren.

Verwandte Nachrichten
  • Was ist Beschallung verstärker?Was ist Beschallung verstärker?May 25, 2023Die Grundlagen von PA Amplifiers Public Address (PA)-Systemen sind zu einem unverzicht baren Werkzeug für die Bereitstellung von klarem, verständlichem Klang in verschiedenen Umgebungen geworden, einschl ießlich Schulen, Gotteshäusern, Stadien und...view

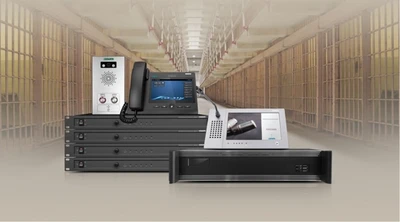

  • DSP9000 IP Network PA &  Intercom System for Prisons - 翻译中...DSP9000 IP Network PA & Intercom System for Prisons - 翻译中...April 25, 2025DSP9000 IP Network PA & Intercom System integrates computer networks, PSTN, and mobile communication networks into a unified audiovisual communication solution. It enables interconnectivity across LAN, WAN, PSTN, and mobile devices, offering cost-effective voice, video intercom, and broadcasting functions, making it ideal for application in schools, hospitals, apartments, factories, and public transit stations.view
